Female 3M Connector IDC Connectors , Triple Pin RED 3M UR2 Connector Connector

Name: Female 3M Connector IDC Connectors Triple Pin RED 3M UR2 Connector Connector
Brand: ANSHI
Price: 1 USD

Female 3M Connector IDC Connectors , Triple Pin RED 3M UR2 Connector Connector Manufactures

Brand Name : ANSHI

Model Number : XL-023UR

Certification : ISO9001

Place of Origin : CHINA

MOQ : 20000

Price : Negotiable

Delivery Time : 1000000pcs/week

Packaging Details : 10000/ctn

Material : PC

inner diameter : 0.4-0.9

Maximum insulation : 2.08

Gender : Female

Type : Communication parts

color : RED

Pin : Triple pin

Application : wire, All Electric Area

Contact Now

UR Connector IDC Terminal Block 3M Standard Connector 3 Wire RED

Product Description:

1. Used to connect two wires safely and rapidly with moistureproof.
2. Applied to the conductors with inner diameter of 0.4—0.9mm
3. Can connec the cable directly
4. You need’t to shuck off the covering layer when connecting,it can be compression in one time,junction with organic silicon grease oil sealed ,waterproof and antisepticize

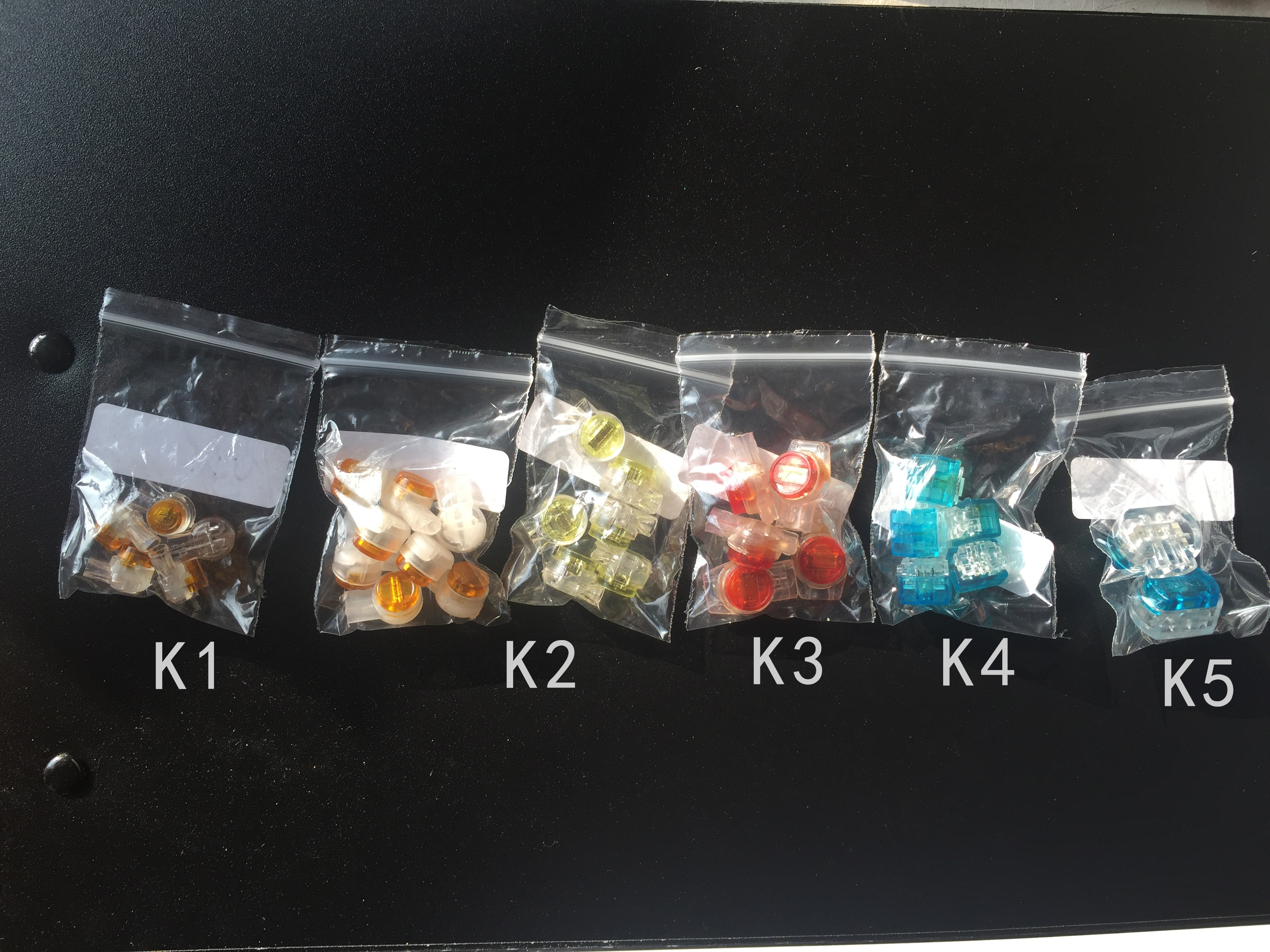

5. There are UY,UY2,UR,UDW2 type etc

Double end connector

End connector for the simple connection of plastic-insulated telecommunications cables in splice closures of types DC and FE, suitable for wire diameters 0.40 – 0.90 mm.

Supplied: double connector incl. sorting ring

Item No	Maximum insulation	Wire Range	Item Name
	1.52mm	0.4-0.7mm	UY
	2.08mm	0.4-0.9mm	UY2
	1.67mm	0.4-0.9mm	UR
	2.08mm	0.4-0.9mm	UR2
	3.18mm	0.9-1.3mm	U1B
	3.18mm	0.5-0.9mm	U1R
	4.45mm	0.9-1.3mm	UDW2
