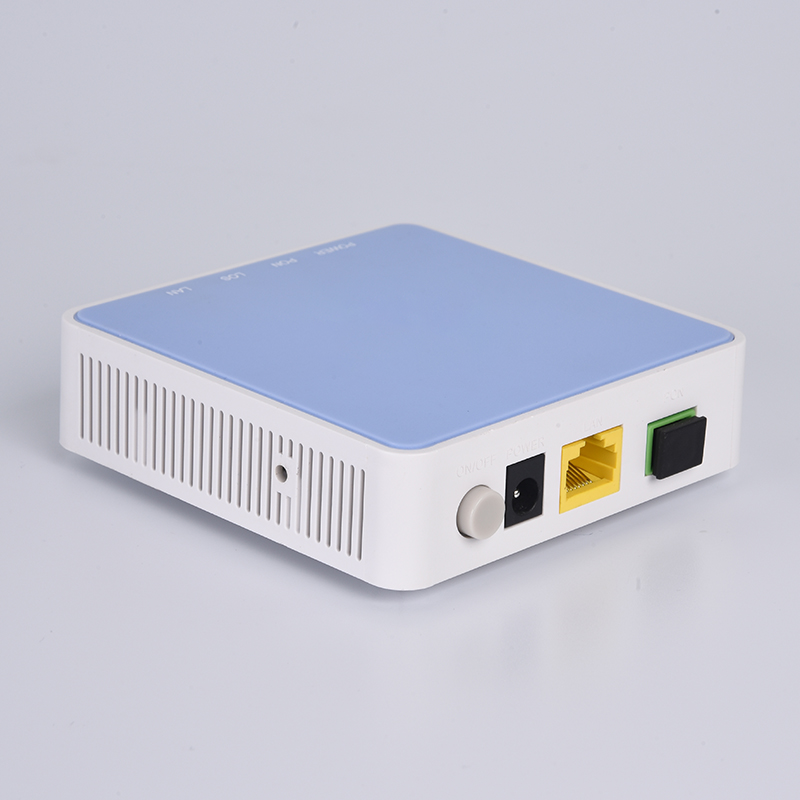

XPON 1GE model ONU is a user terminal device independently developed by our company line with such industrial background. The device has built-in two-layer switching function. It is compact and compact, and is an FTTH optical network unit with high performance and low power consumption. ONU can automatically switch EPON/G-PON working mode and can be used in EPON/GPON network, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
♦ GPON working mode Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ EPON working mode compliant with IEEE 802.3ah specifification and OAM protocol
♦ Supports the WEB confifiguration function
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, supports Route mode, etc
♦ Supports the confifiguration of Ethernet interface rates, working modes,MDI/ MDIX auto-negotiation mode, and Pause flflow control
♦ Provides performance statistics on all Ethernet lines
♦ Support multicast IGMP snooping
♦ Supports the L2 wire speed forwarding
♦ Supports the AES-128 algorithm for data encryption of downlink data
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/AS-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server confifiguration
♦ Support Port Forwarding and Loop-Detect
