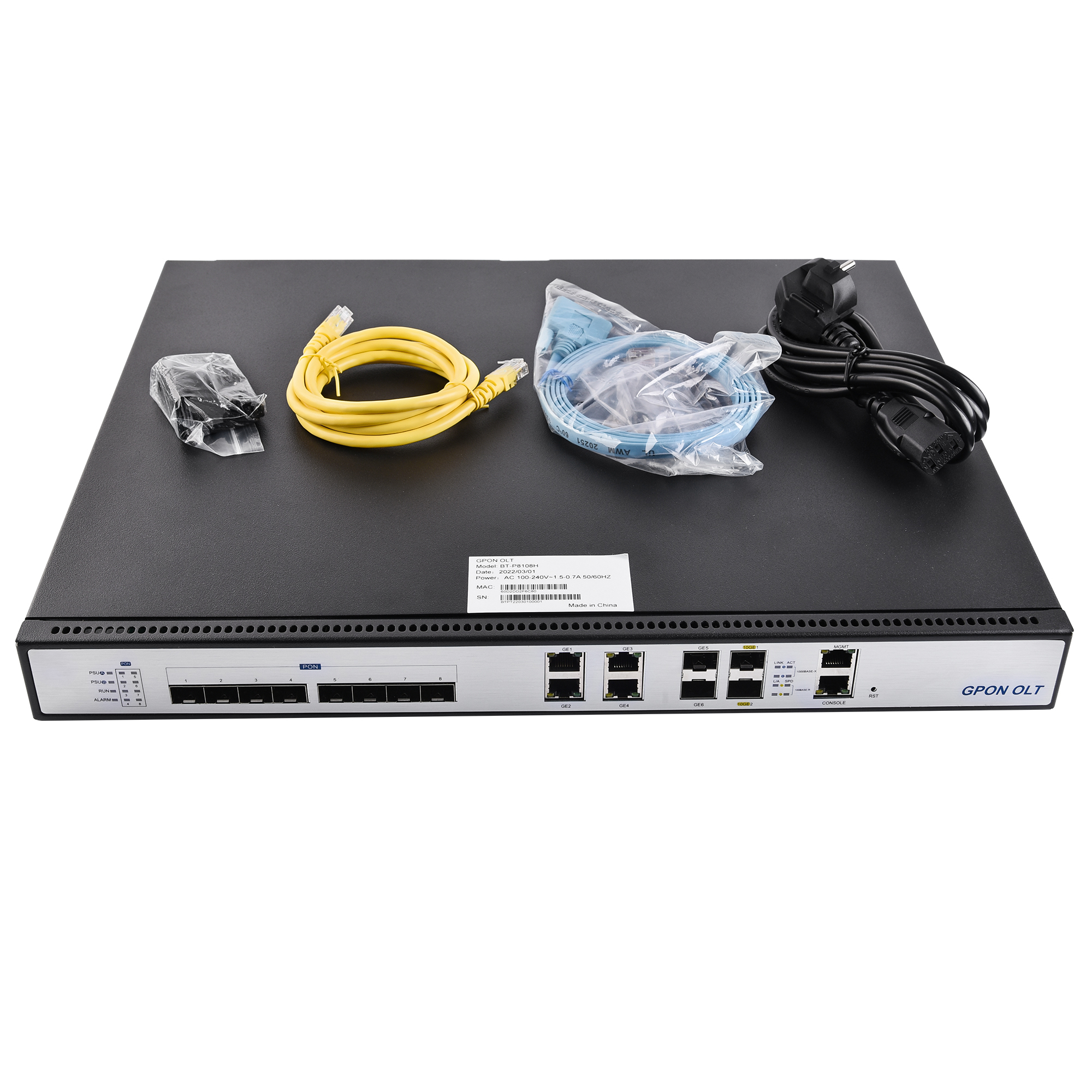

AS-OLT-02A GPON OLT Supports 1/128 Split Ratio Access 1024 ONU Users At The Same Time

Brand Name : ANSHI

Model Number : AS-OLT-02A

Certification : ISO9001, SGS

Place of Origin : ZHEJIANG, CHINA

MOQ : Negotiable

Price : Negotiable

Product name : GPON OLT

GPON interface : 8 x GPON (2.5/1.25 Gbps)

10GE Ethernet : 2 x 10GE SFP+

Dimensions : 440mmX400mmX44mm

Weight : ＜ 6.5KG

Spaging ratio : 1: 128

Contact Now

AS-OLT-02A GPON OLT Supports 1:128 split ratio,can access 1024 ONU users at the same time

Product Overview

AS-OLT-02A is GPON OLT series product, 19-inch 1U height rack-mounted, featuring small size, convenience and flflexibility, easy deployment, and high performance. Easy installation and maintenance, saving space.
AS-OLT-02A GPON OLT provides 8 standard EPON PON ports ; 4 uplink GE Ethernet RJ45 ports; 2* GE SFP+optical ports and 2* 10GE SFP+ optical ports.Supports 1:128 split ratio,can access 1024 ONU users at the same time. Support difffferent types of ONU hybrid networking, suitable for triple play,Video network, corporate LAN, and Internet of Things scenarios. Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB/FTTO projects.

Product Specifications
GPON interface
8 x GPON (2.5/1.25 Gbps)
10GE Ethernet
2 x 10GE SFP+
1GE Ethernet
4 x RJ-45 + 2 x SFP
GPON
ITU-TG.984.x standard
Console
RJ-45 EIA/TIA-232 Console management port
MGMT
1000BASE-T out-band management port
Switching Capacity
82Gbps
Spaging ratio
1: 128
Maximum ONU quantity
4096 GEM port-ids, 1024 T-CONT, 128 ONT
Power Adaptor
AC Input:100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design
Pluggable double power supply, double AC, double DC and AC+DC
Consumption
＜70 W
Storage
temperature -10 to 70°C, rel. humidity 10‒90% (non-condensing)
Operation
temperature 0 to 45°C, rel. humidity 10‒90% (non-condensing)
Dimensions
440mm×400mm× 44mm(W * D *H)
Weight
＜ 6.5KG
